Bespoke pedalboard for a musician

A complete, portable pedalboard, housing the effects pedals, a centralised power switch and elegant finishes that hide every connection.

  • Music
  • 3D printing · Laser
  • Wood · PLA
  • December 2025
Bespoke pedalboard for a musician
// ClientPrivate customer
// SectorMusic
// Technology3D printing · Laser · Electronics
// CompletedDecember 2025

Client's need

1

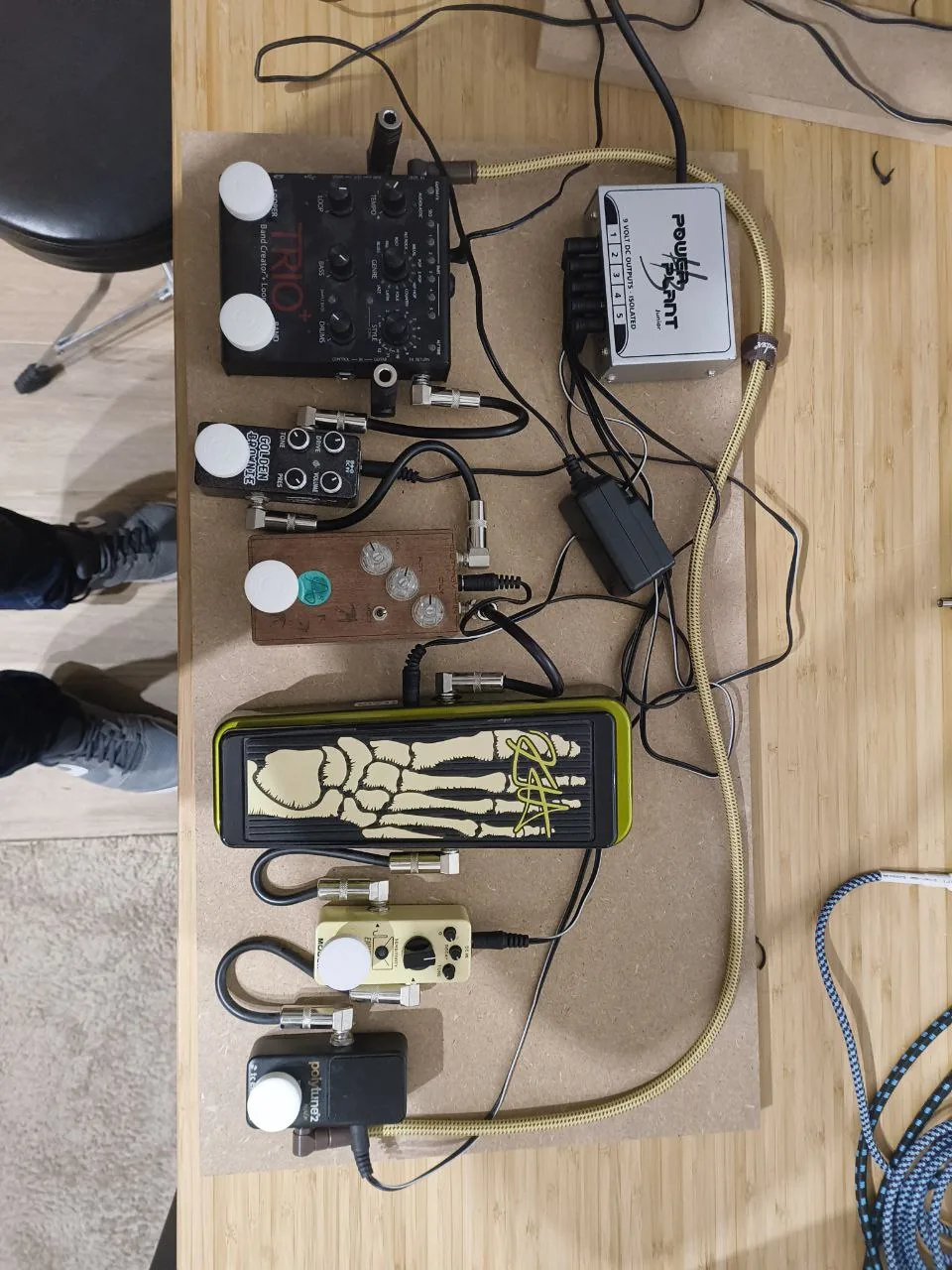

The request

An amateur musician came to us wanting to design a complete bespoke pedalboard that was at once functional, portable and attractive. This wasn't simply a stand, but the entire enclosure housing his effects pedals, accessories and connection system. The client provided his pedals and gave us free rein on the design, with one main instruction: be creative while staying practical. The project's goals:

  • hold all his pedals, cables, accessories and reference sheets,
  • hide every connection for a clean, coherent look,
  • integrate a centralised activation system,
  • provide a button-raising system to make foot operation easier,
  • ensure protection against dust.
The request
2

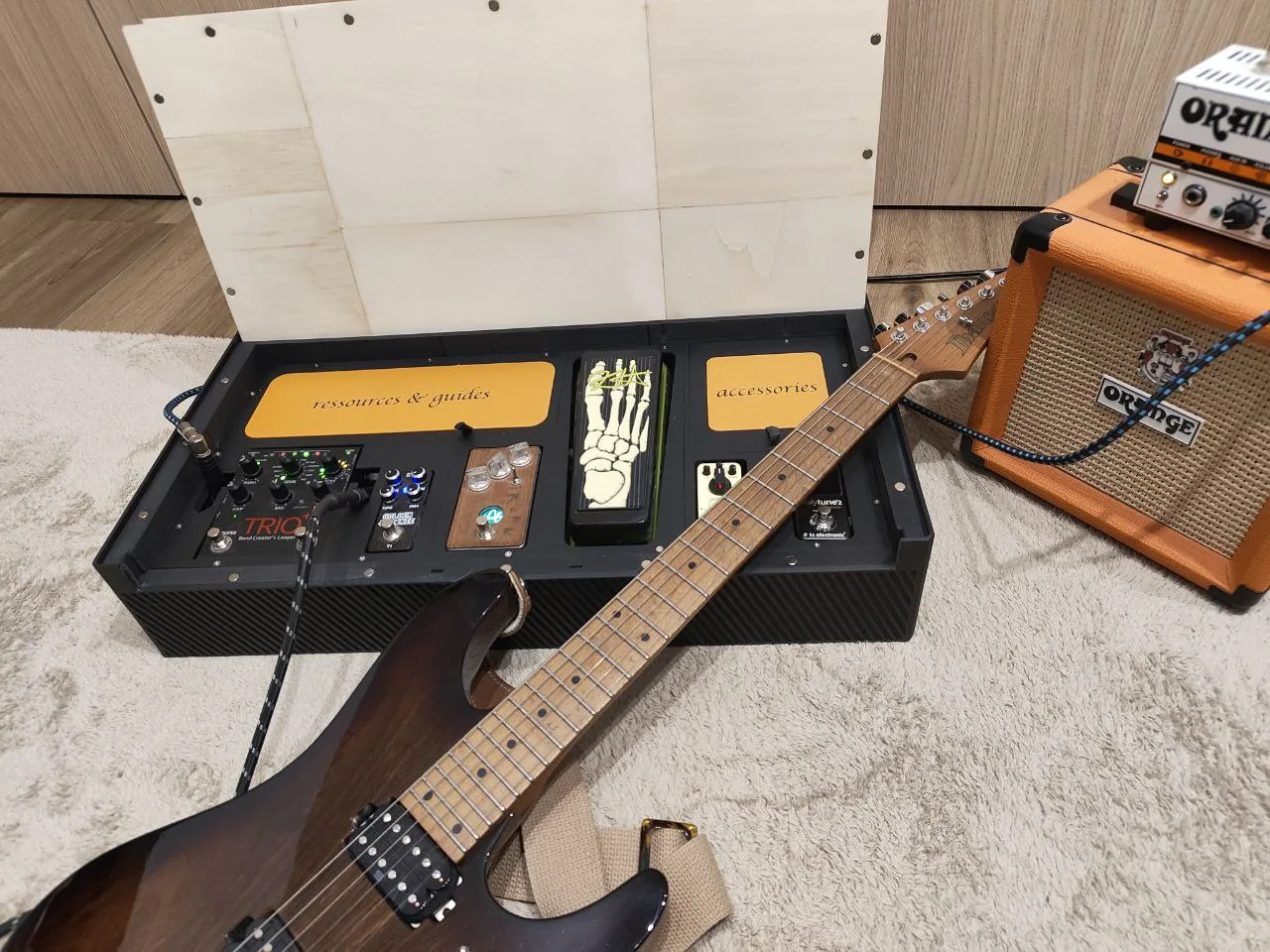

The need

The client wanted a compact, self-contained object able to meet several uses:

  • regular use at home,
  • easy transport when travelling,
  • reliable protection against dust,
  • and quick handling during music sessions.
The need
3

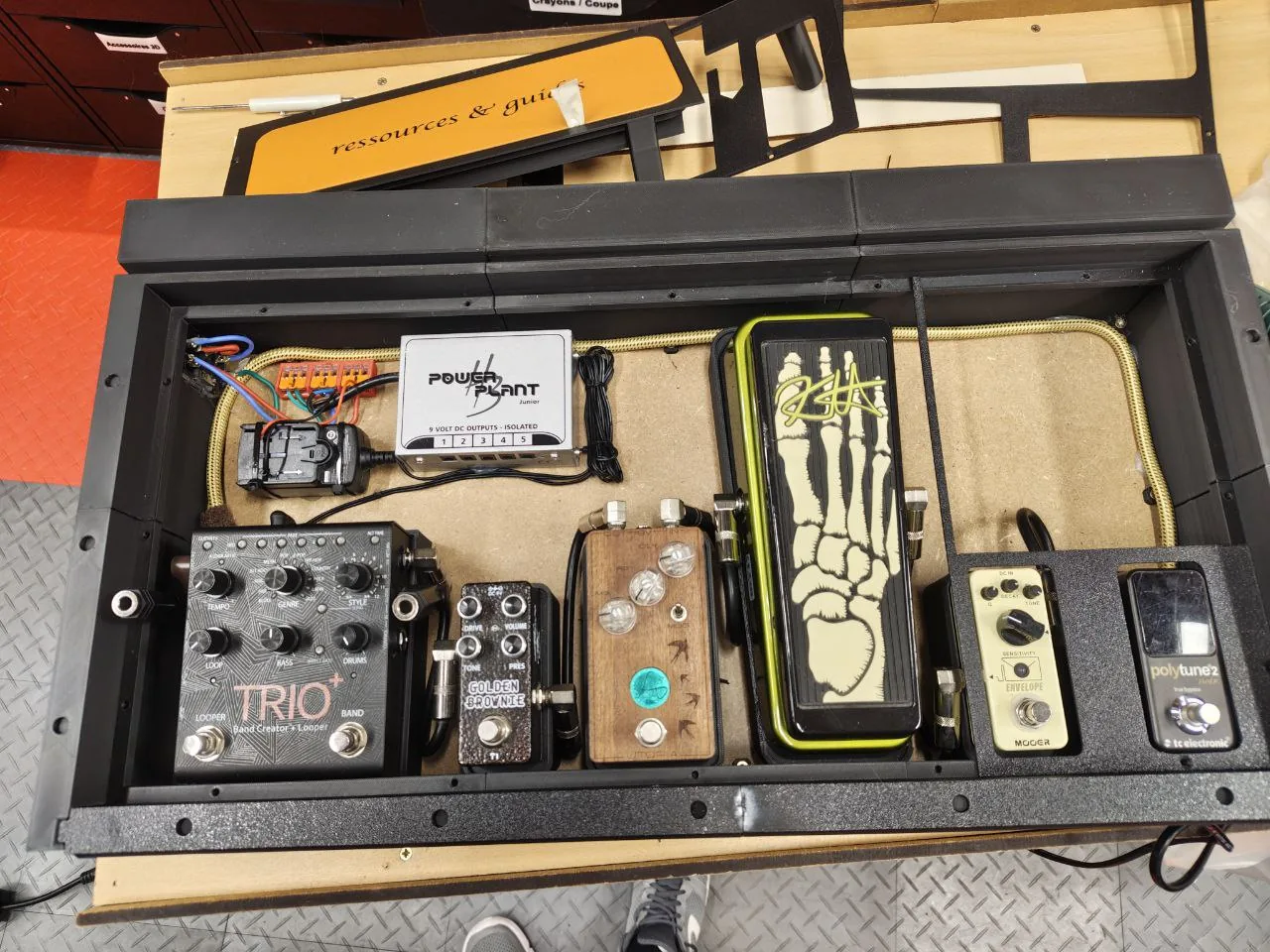

Our objective

The main goal was to design a bespoke pedalboard, complete and ready to use, incorporating the technical constraints, the aesthetic expectations and the musician's practical needs. We brought several skills to bear:

  • Bespoke design of the overall structure, the internal supports and the wedging elements,
  • Laser cutting of wooden panels with our Xtool for a clean, modular and sturdy result,
  • Electronic integration of the pedals' overall power system,
  • 3D-printed button raisers for more comfortable foot operation.
Our objective

Our response

1

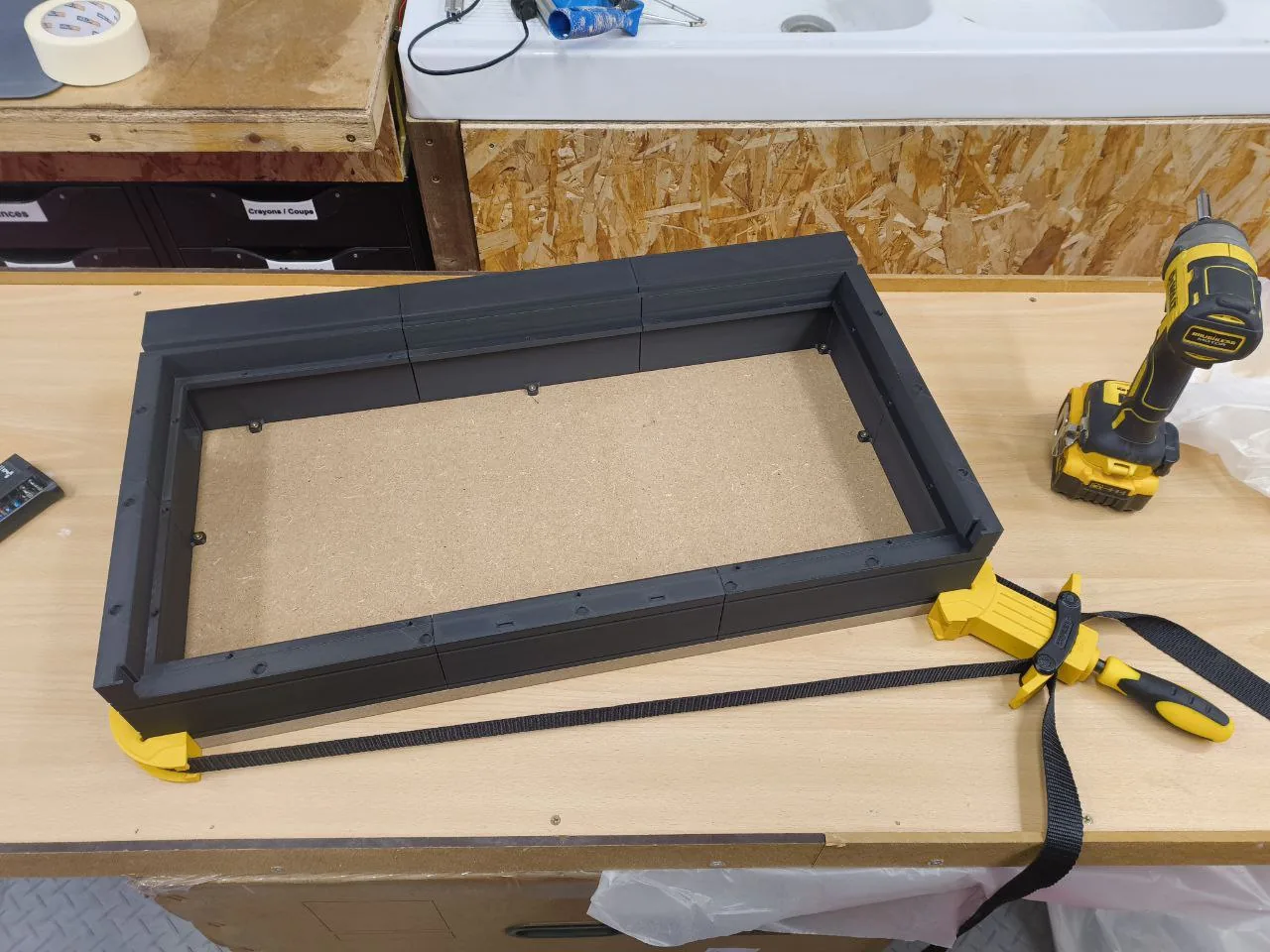

Designing the structure

We began by fully modelling the enclosure, taking into account:

  • the number and shape of the pedals to fit,
  • the compartments needed for cables, plugs and accessories,
  • and the target volume, to guarantee a controlled footprint.
Designing the structure
2

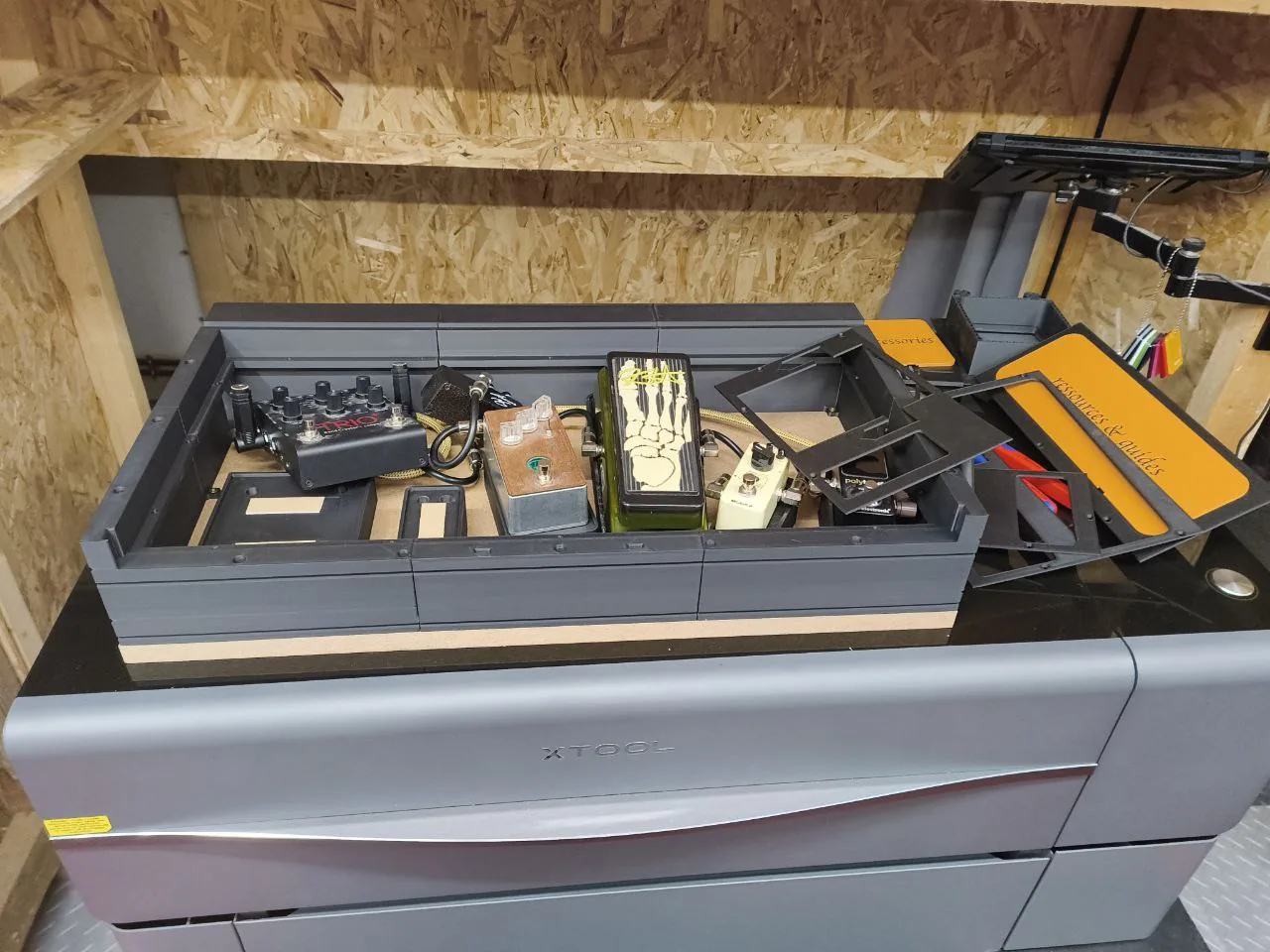

3D printing the functional parts

3D printing was called on to add key functions to the pedalboard, with bespoke parts designed to:

  • ease daily use,
  • improve ergonomics,
  • and optimise the internal layout.
3D printing the functional parts
3

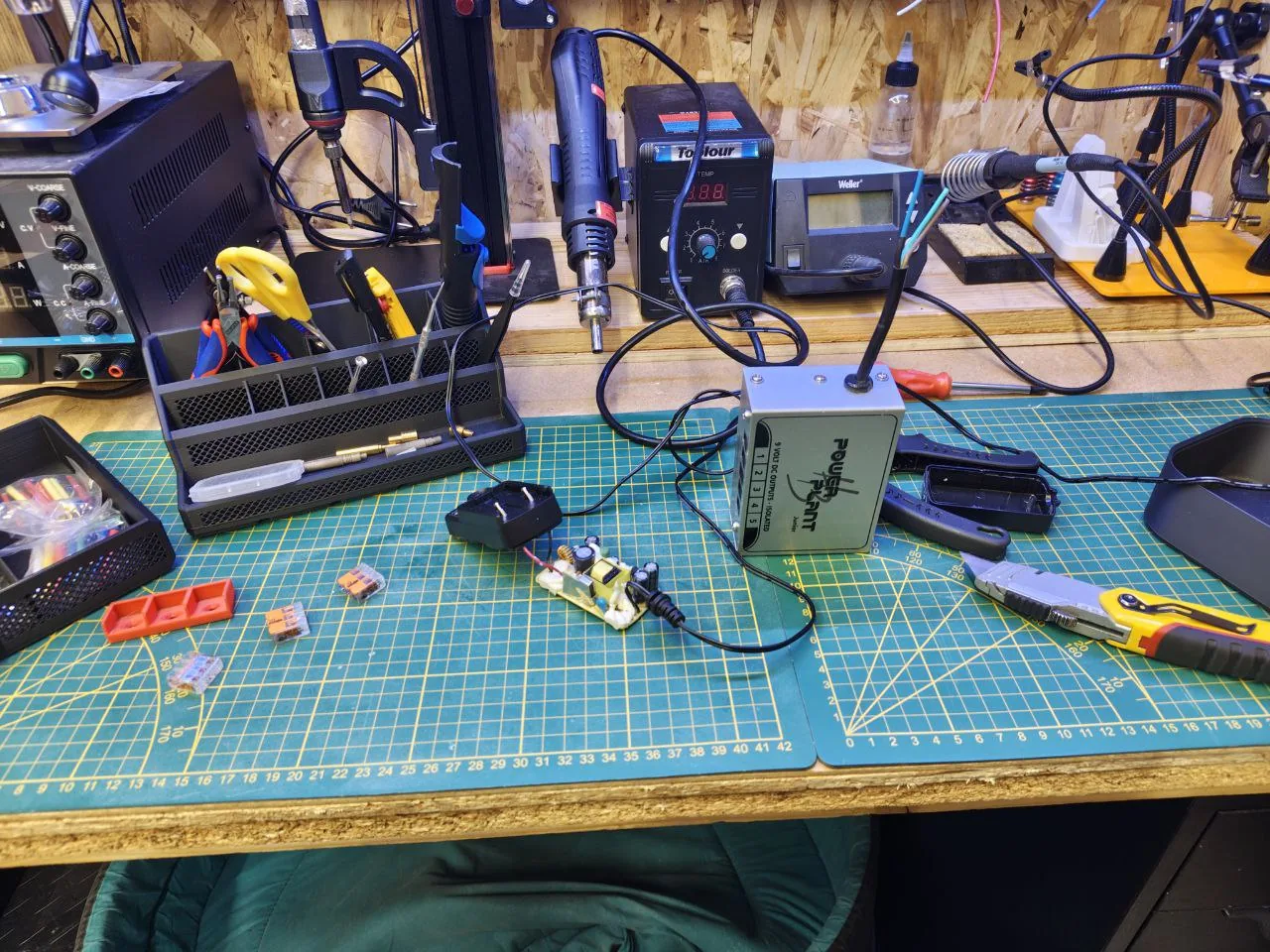

Integrating the electronic system

To simplify daily use, we integrated a centralised power system, allowing all the pedals to be powered through a single side switch. Work carried out:

  • Fitting a shared internal power supply,

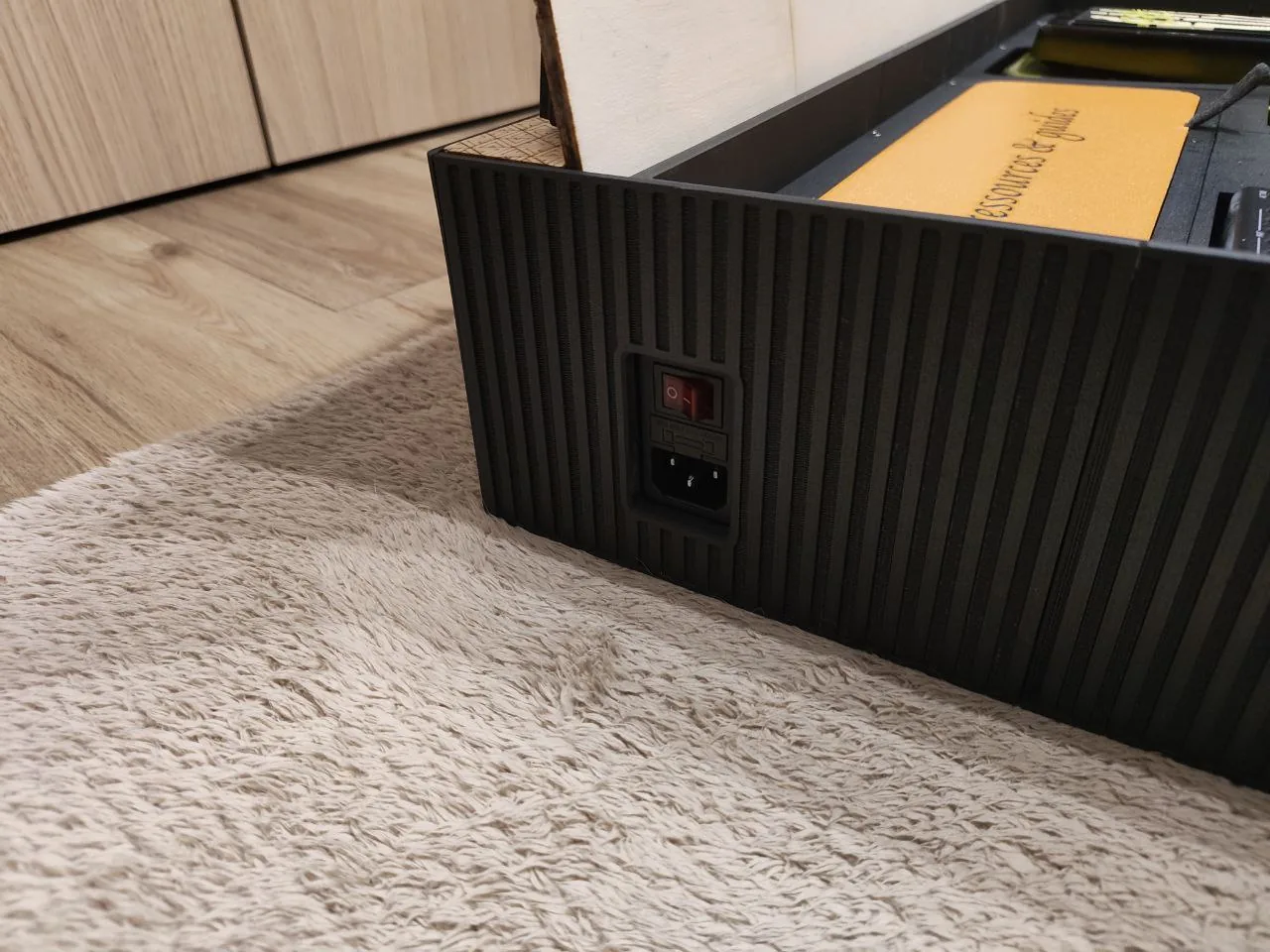

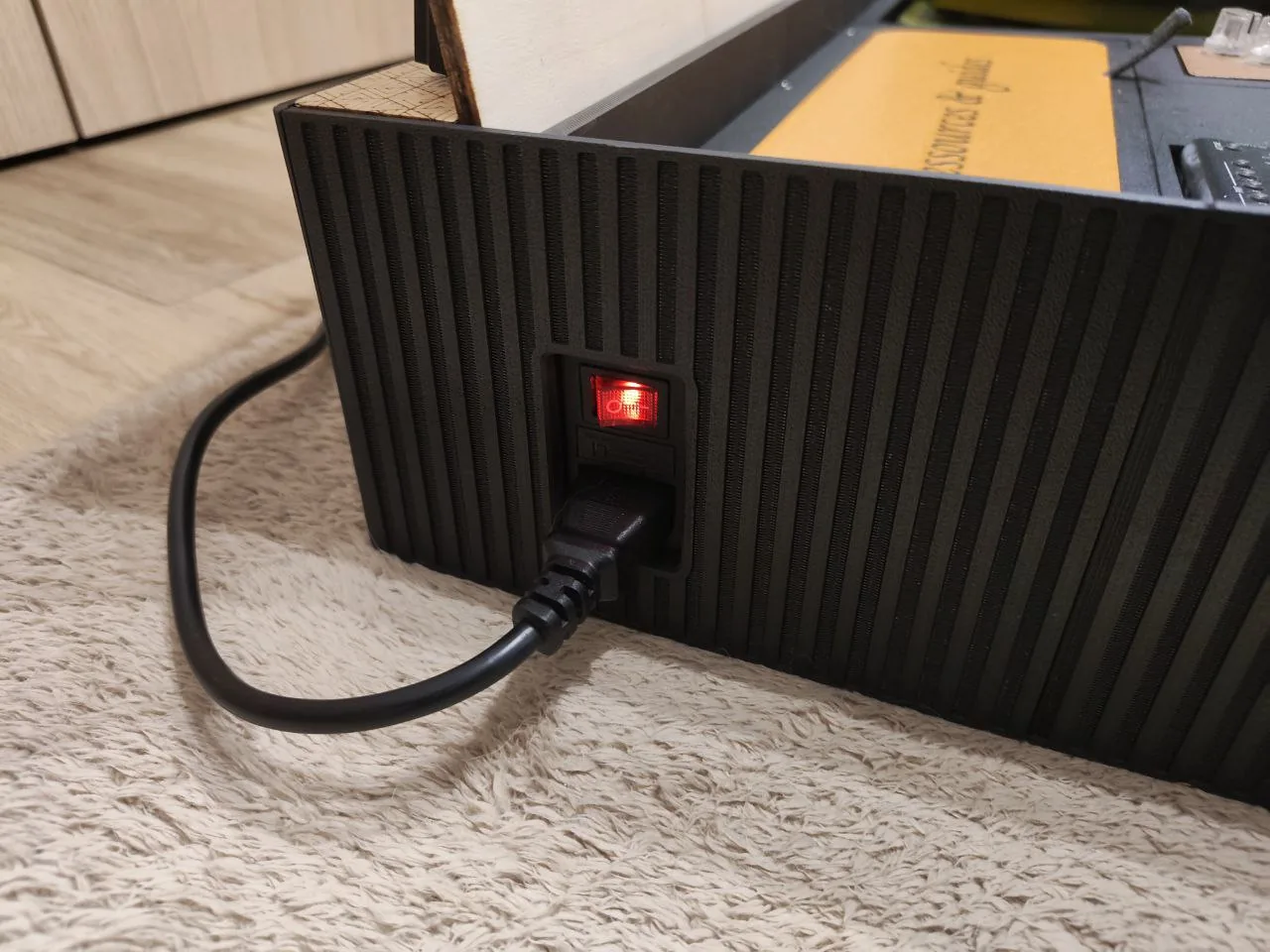

  • Integrating a discreet switch on the side of the pedalboard,
  • Arranging invisible wiring routed within the walls,
  • Checking compatibility with each pedal's specific power supply.
Integrating the electronic system
4

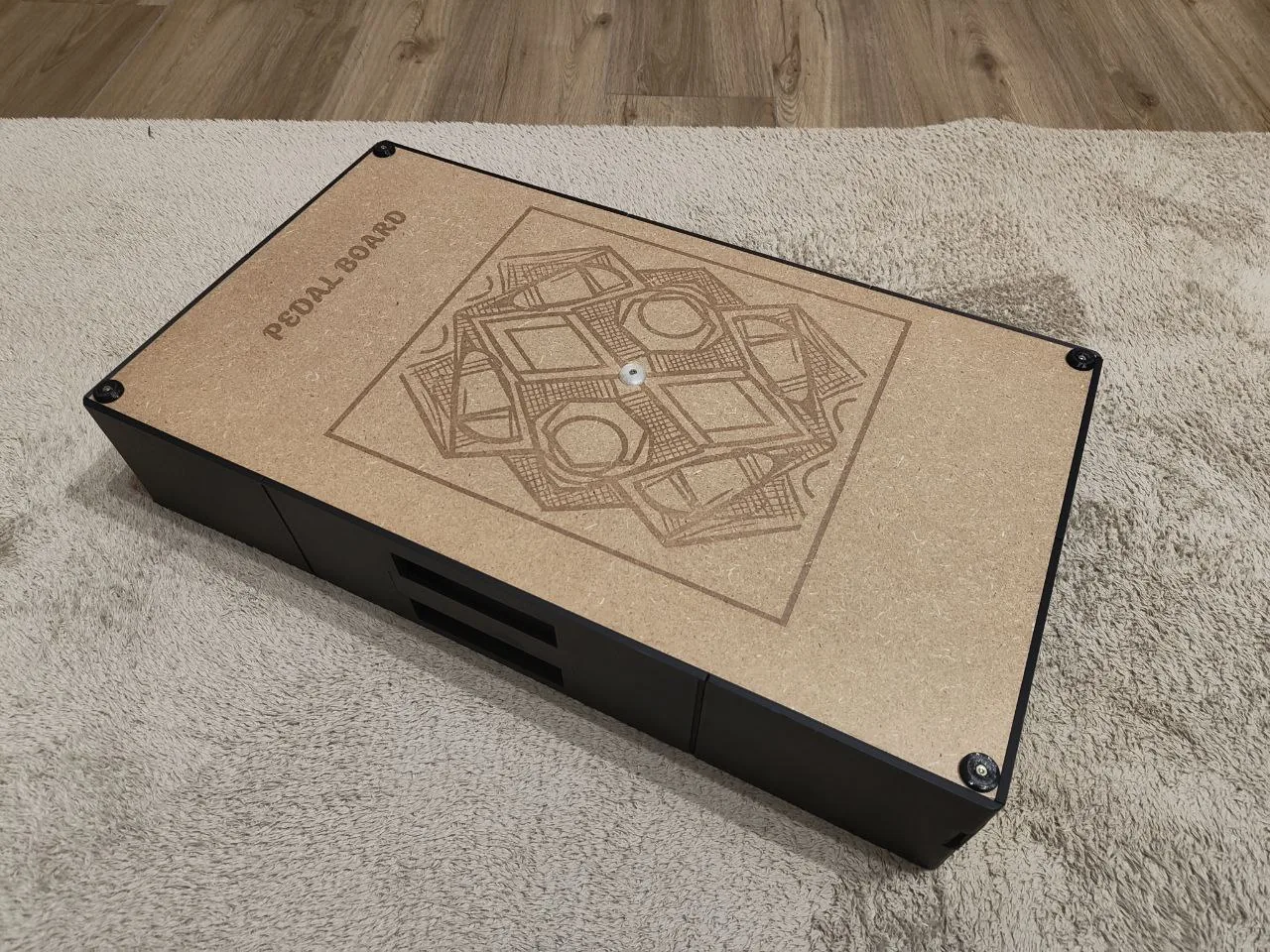

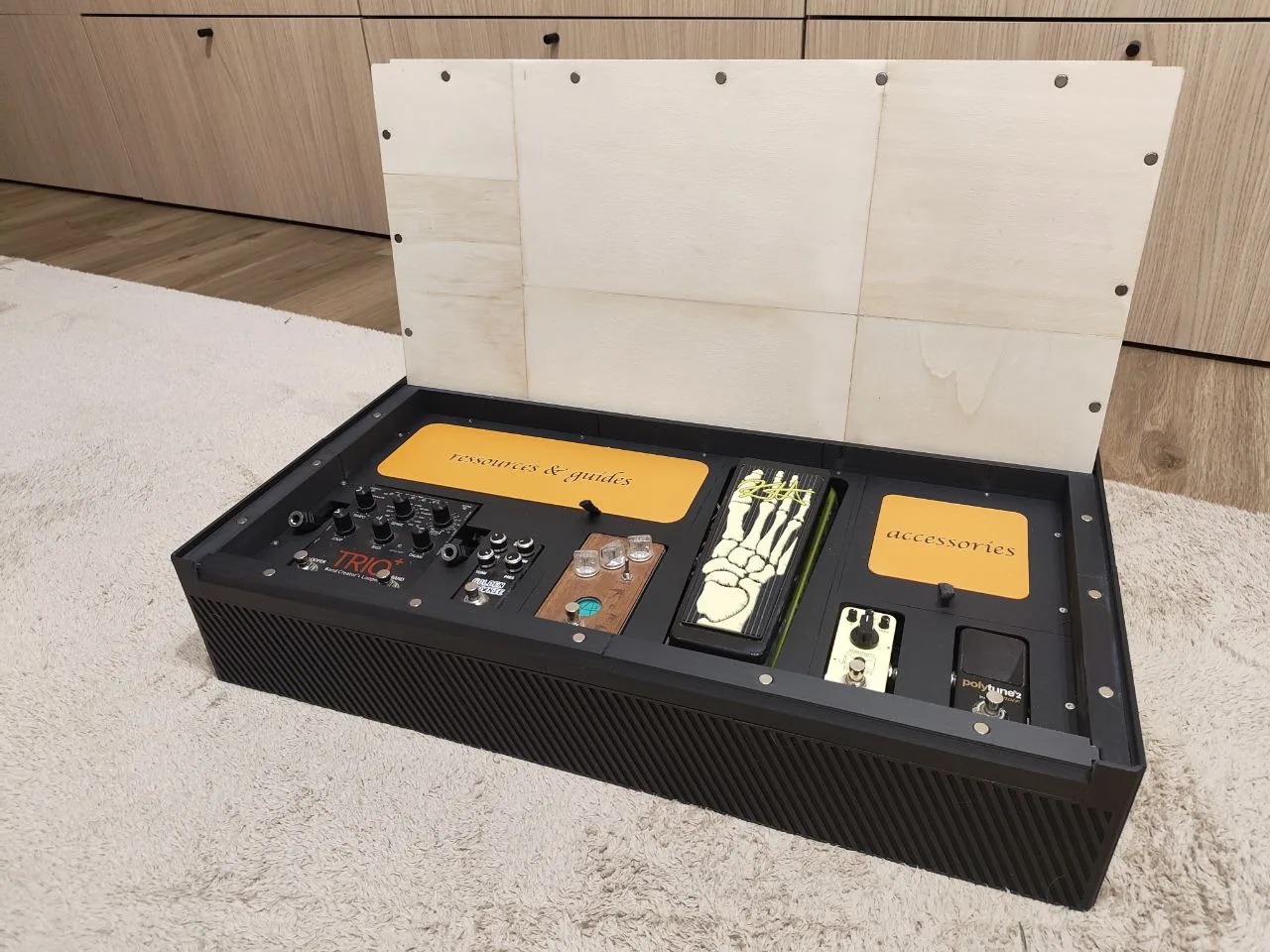

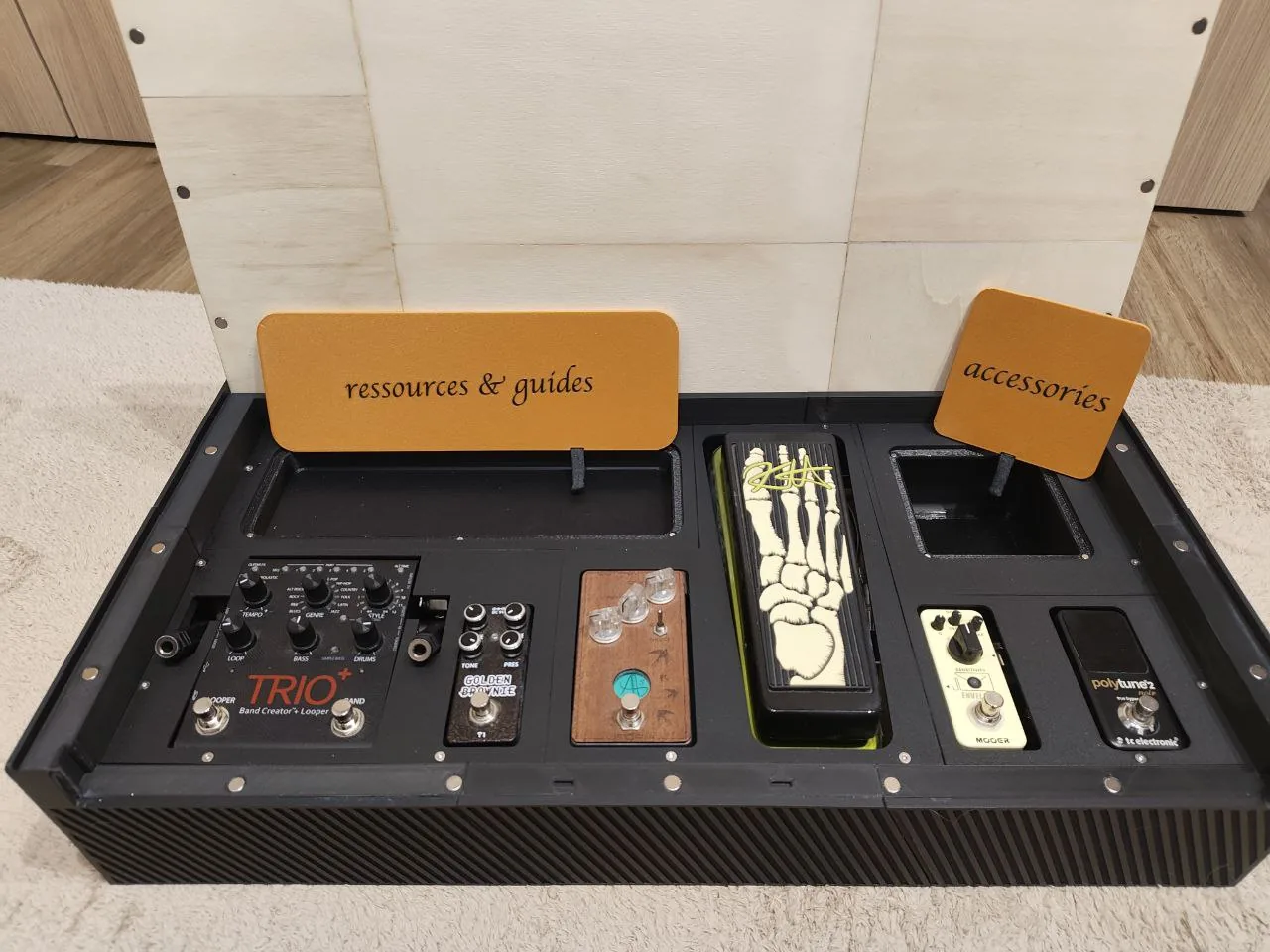

Finishing and visual result

Particular attention was paid to the finishing to make the pedalboard an object that is both functional and attractive. Finishing work carried out:

  • Sanding the wooden panels after cutting,
  • Clean and discreet assembly of the structural elements,
  • Choosing coherent colours: raw wood, deep black, and a few contrasting touches to highlight the ergonomics,
  • Checking the visual alignment between the pedals, the raisers and the enclosure.
Finishing and visual result
Conclusion

A stage instrument, built for the road

Integrated electronics, hidden wiring, a portable format: 3D printing and laser cutting turn a musician's need into a finished object, robust and ready for the stage.

In pictures

The project in pictures

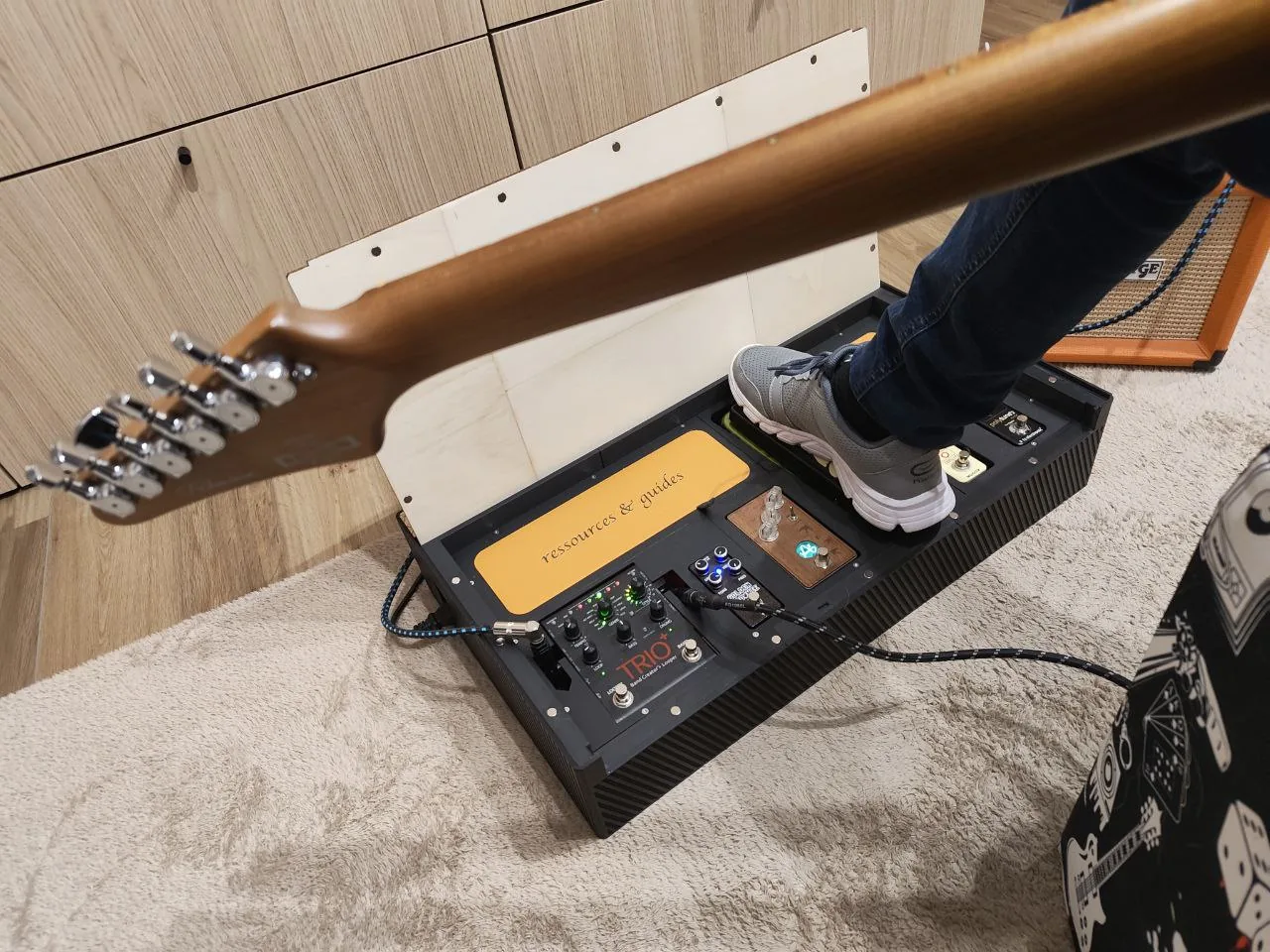

Bespoke pedalboard for a musician — photo 1
Bespoke pedalboard for a musician — photo 2
Bespoke pedalboard for a musician — photo 3
Bespoke pedalboard for a musician — photo 4

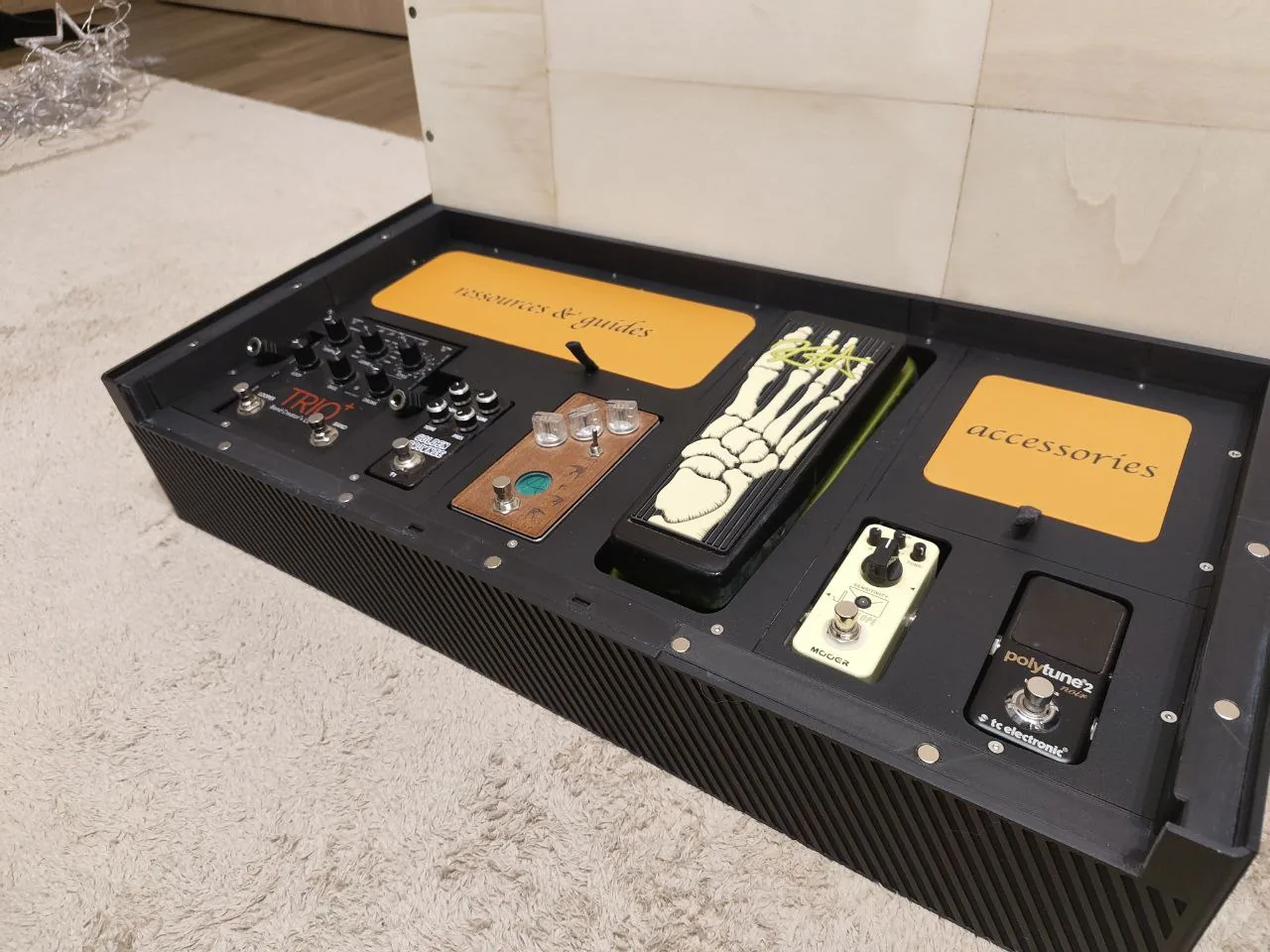

Bespoke pedalboard for a musician — photo 5
Bespoke pedalboard for a musician — photo 6
Bespoke pedalboard for a musician — photo 7

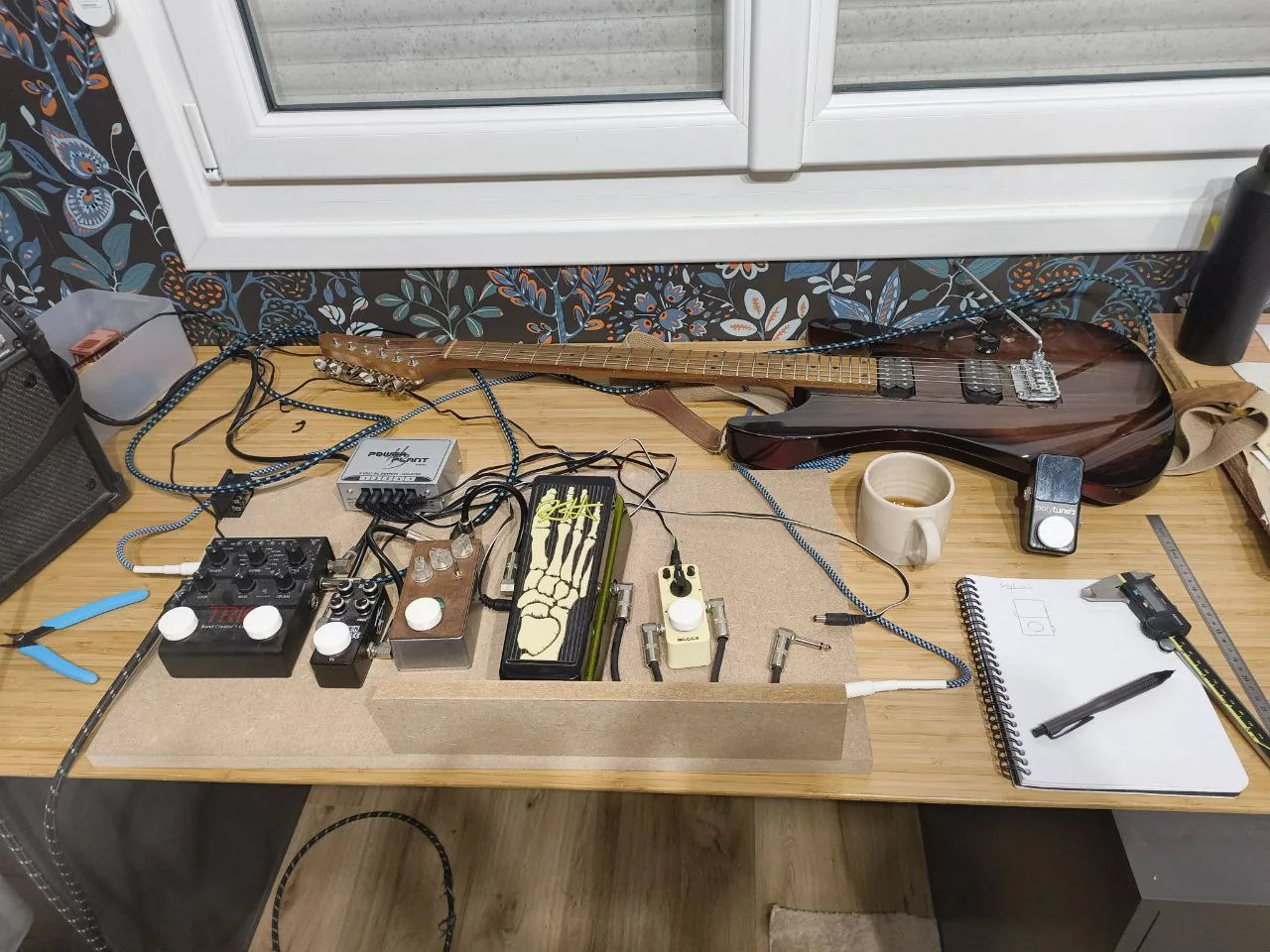

Bespoke pedalboard for a musician — photo 8
